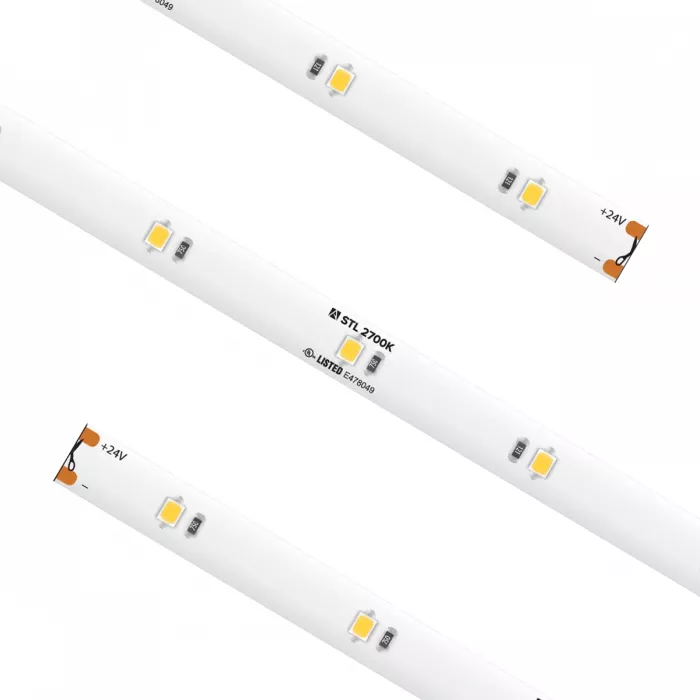

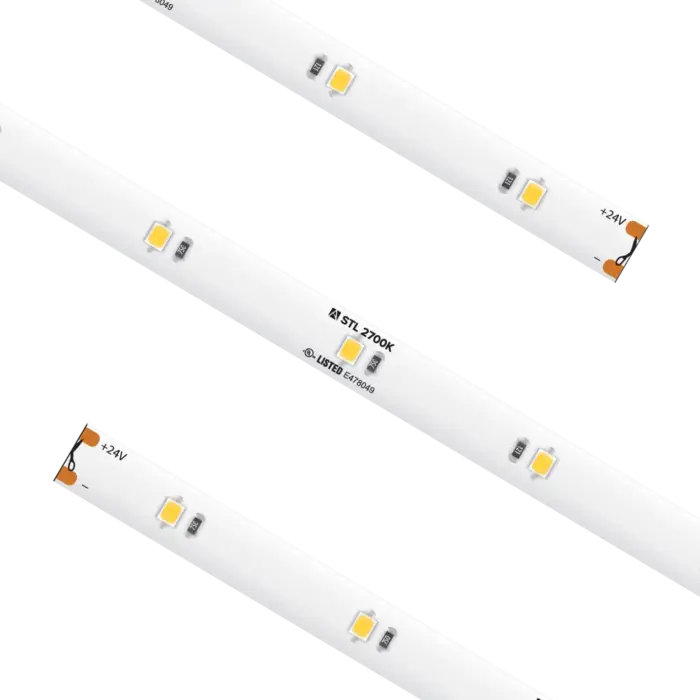

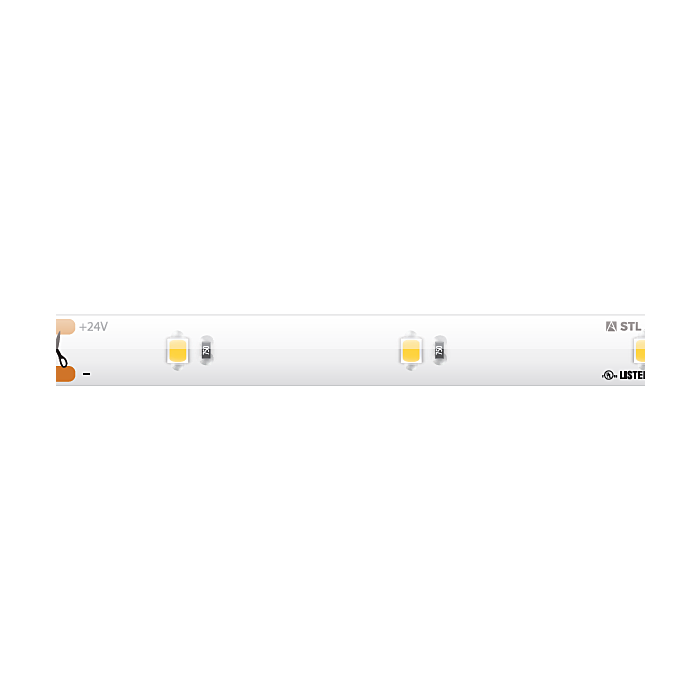

STL-UWW Trulux Standard Grade Tape Light 2700K 24V 16.4Ft by American Lighting

Special Price $120.69 Regular Price $134.10
SKU
6045

2700K | Dimmable | 146 Lumens per foot | 2.19 Watts per foot | 24V DC | IP54 Coated | 5-year warranty | 50,000-hour lifespan

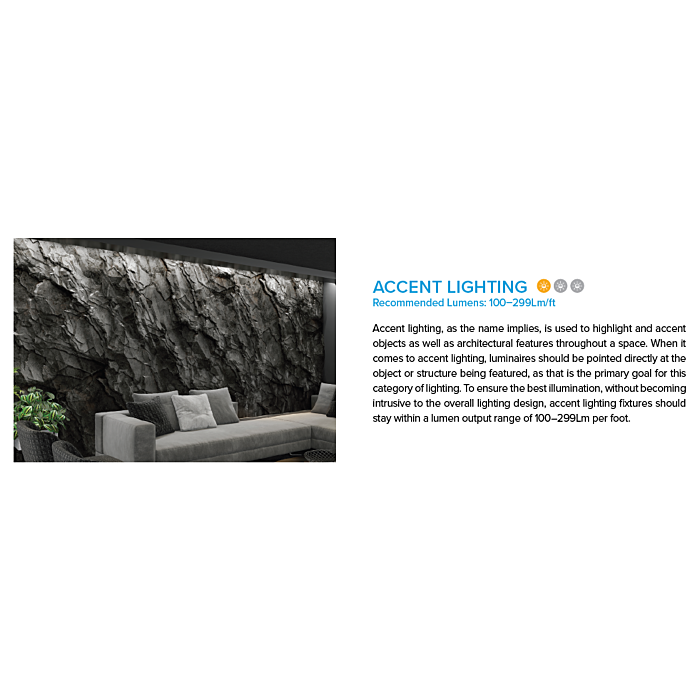

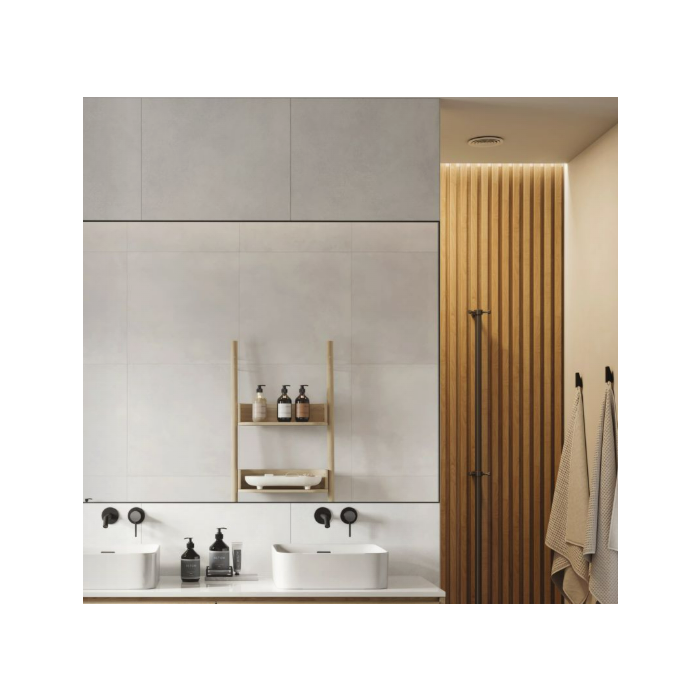

Create a flexible and cost-effective layered lighting system using Standard Grade LED tape lights. Offering 146 lumens per foot and convenient run lengths of up to 32.8-feet. This tape is ideal for accent lighting applications that prioritize soft, subtle illumination.

American Lighting

STL-UWW Trulux Standard Grade Tape Light 2700K 24V 16.4Ft by American Lighting

  • Includes Attached 3ft Lead Wire / (3) TL-CONKIT / (3) TL-BLKS / (3) TL-2PWR-HD
  • Standard Grade output performance
  • Easy installation featuring 3M VHB adhesive backing
  • Suitable for use in closets when used in an enclosed extrusion based on NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)

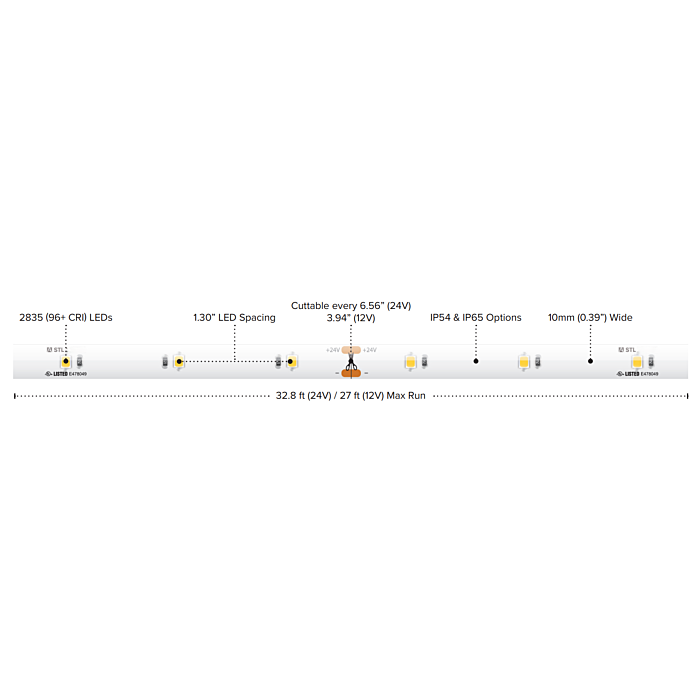

  • Style: 2Pin Linking
  • Spacing: 1.30 Inch
  • Length: 16.4Ft (196.8in)
  • Dimensions: 0.39” (10mm) W x 0.06” (1.65mm) H
  • Weight: 0.80 lbs
  • Max Run Length: 32.8 ft

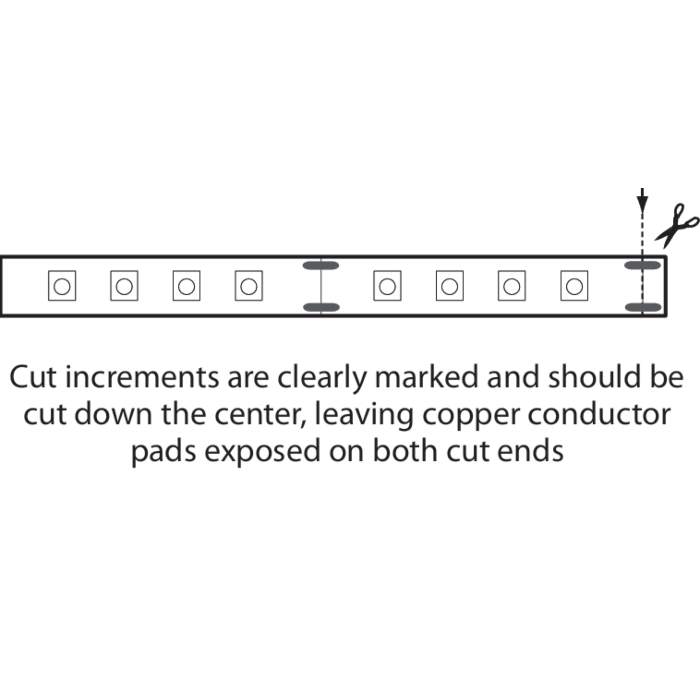

  • Cutting Points: 6.56” (167mm)
  • Voltage: 24V DC
  • Wattage: 2.19W / ft
  • Lumens: 146Lm / ft
  • CCT: 2700K / Warm white
  • CRI: 96+
  • Dimming: (5 - 100%) with most ELV, TRIAC dimmers *Not compatible with Switchex All-in-one LED Driver + In-Wall Dimmer Switch
  • Beam Angle: 120°
  • Operating Temp: 5°C (41°F) to 70°C (158°F)

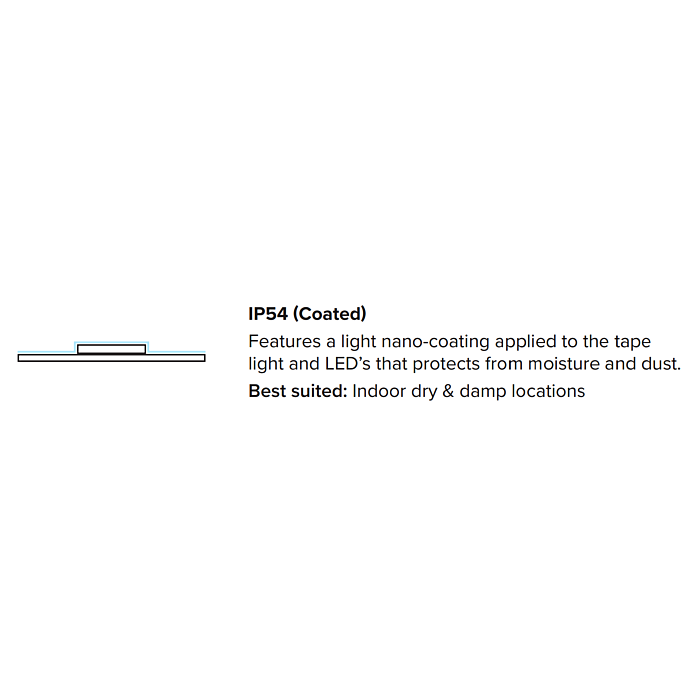

  • IP Rating: IP54 Coated
  • Certifications: cULus Listed - Dry / Damp Location
  • Compliances: JA8 Compliant, Title 24 Compliant
  • Rated Life: 50,000 Hours
  • Warranty: 5 years
  • More Information
    Product Data Sheet
    Brand American Lighting
    Mfg # STL-UWW
    Order Code STL-UWW
    UPC 714176004013
    Beam Spread 120
    Input Volts 24VDC
    Dimmable Yes
    Dimming Range 5%-100%
    Dimming Type Triac, ELV
    Color Warm White
    CRI 96+
    Lumens/Watt 146 Lumens per foot
    Length (in.) 196.8 in
    Width (in.) 0.39” (10mm) W
    Height (in.) 0.06” (1.65mm) H
    Dimensions 0.39” (10mm) W x 0.06” (1.65mm) H
    Min Total Length (ft) 6.56” (167mm)
    Max Total Length (ft) Max Run Length 32.8 ft
    Protected Yes
    Rating IP Rating IP54, Safety Rating cULus Listed
    Certifications cULus, Damp Rated, IP54, Title24
    Warranty 5 Year Warranty
    Life (hrs) 50,000-hour lifespan
    Case Size 1
