Advance 71A7801-001D 50 Watt High Pressure Sodium Ballast Kit

Special Price $144.00 Regular Price $192.00

SKU

LD-71A7801-001D

50 Watt High Pressure Sodium Ballast - Lamps: 50 Watt S68 High Pressure Sodium Ballast -Input:120/277V -Starting: Pulse Start

Advance 71A7801-001D 50 Watt High Pressure Sodium Ballast

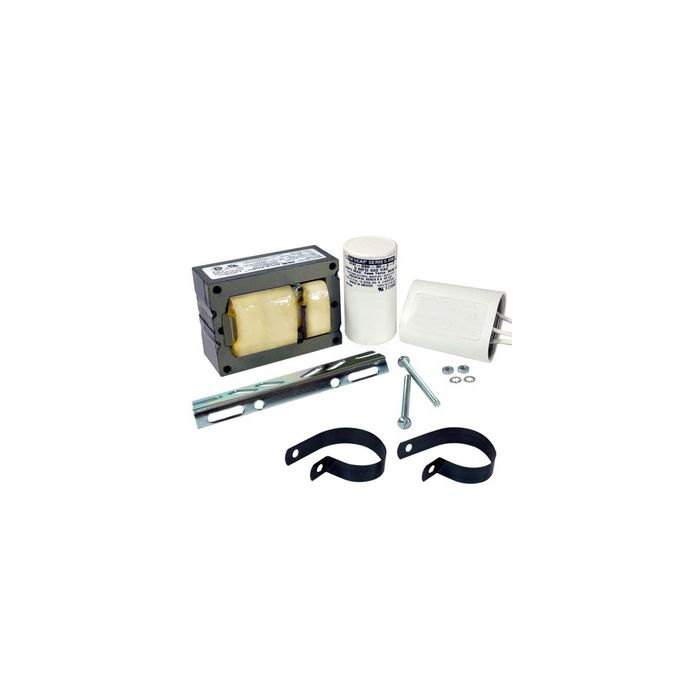

Kit includes: Ballast,Capacitor, Bracket Kit, and Ignitor

ANSI Designation: S68

Line Voltage: 120/277

Regulation: 5%

Frequency: 60 Hz

Recommended Fuse (A): 3/1

Circuit Type: HX-HPF

Insulation Class: 180ºC

Capacitor Value: 5

Capacitor Voltage Rating: 300 V

Capacitor Temperature Rating: 105ºC

Maximum Distance to Lamp: 2 FT

Agency Certification: RU, CSA, UL

2 Year Warranty

More Information
Order Code	71A7801001D
Input Volts	120/277V
Watts	50
ANSI	S68
Brand	Advance
Mfg #	71A7801001D

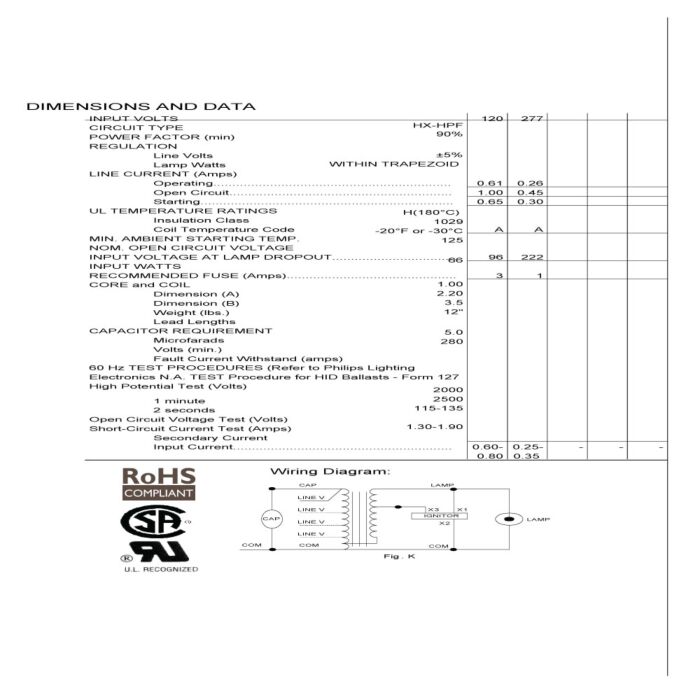

Product Data Sheet	71A7801-001D Advance HID Brochure
Lamps	50 Watt S68 High Pressure Sodium Ballast

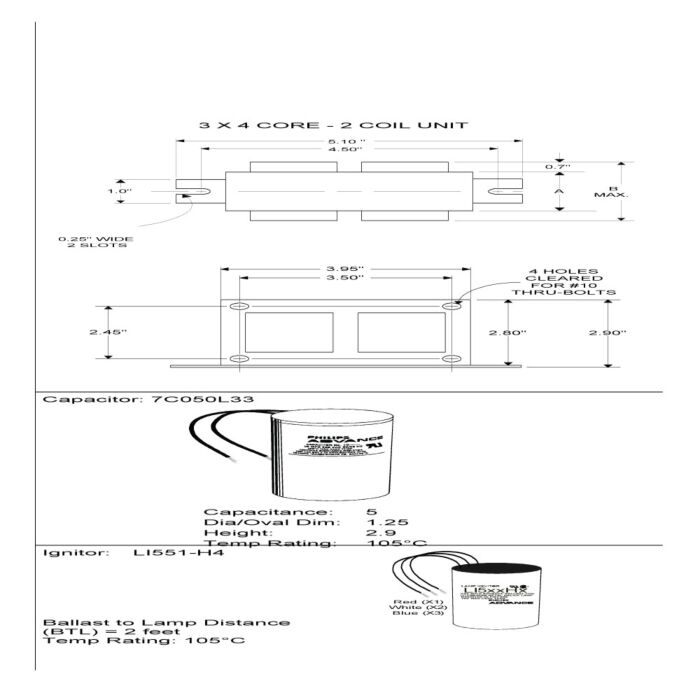

Dimensions	5.1"(L) x 2.2"(W) x 2.9"(H)
Case Size	3
Warranty	2 Year Advance Warranty
UPC	781087081327
