Magnitude M20L12DC-AR Constant Voltage LED Driver

Special Price $66.00 Regular Price $99.00

SKU

BD31-M20L12DC-AR

Constant Voltage - Input: 120V - Output: 12V - 20 Watts

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Magnitude M2012DC-AR Magnetic Dimmable LED Driver

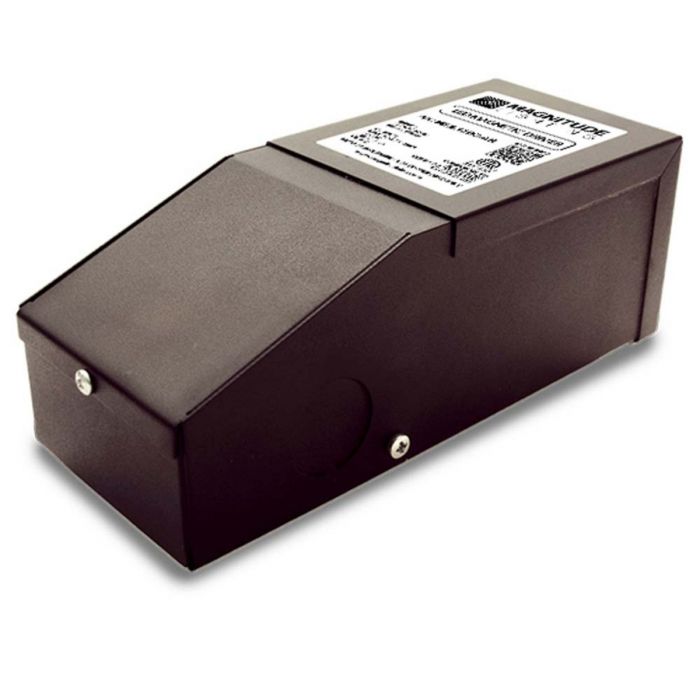

Magnitude’s M20L12DC-AR has a magnetic core and is the most compact LED driver on the market. It is equipped with two auto-reset breakers on the input and output which protect both the load and driver. This driver is encased in a coated metal box that includes 2 knock-outs on the bottom to enable easy installation.

Dimmable with any standard MLV TRIAC dimmer (see recommended dimmer list)

Dual protection - primary and secondary auto-reset circuit breakers

Nema 3R Enclosure - Outdoor Use

Two bottom knock-outs

ETL Listed and certified to CSA Standard

More Information

More Information
Order Code	M20L12DC-AR
Input Volts	120V
Output Current	3.96A
Output Voltage	12V
Watts	20
Brand	Magnitude
LED Type	Constant Voltage
Dimmable	Yes
Mfg #	M20L12DC-AR
Dimensions	5.6" x 2" x 2.14"
Product Data Sheet	M20L12DC-AR-L Compatible Dimmers
Case Size	1
Warranty	5 Year Magnitude Warranty
