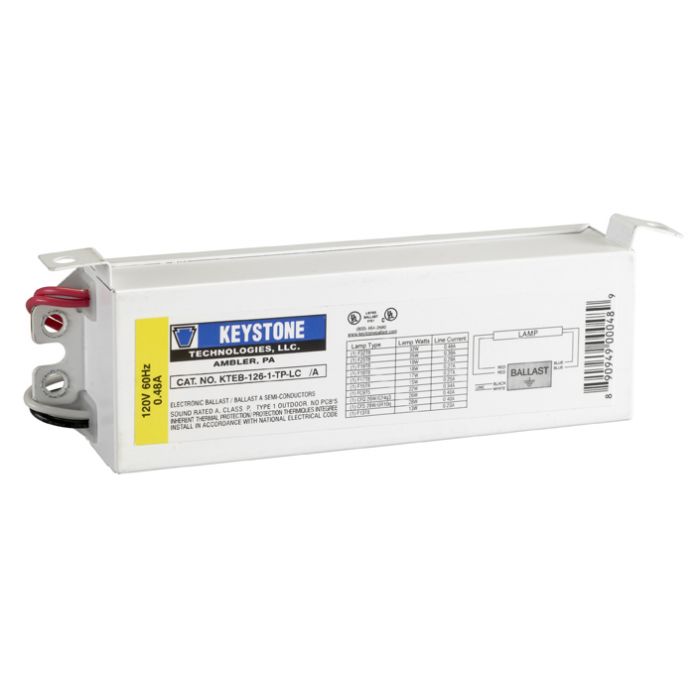

Keystone KTEB-126-1-TP-LC Compact Fluorescent (CFL) Ballast

2 review(s)

Special Price $37.27 Regular Price $55.90

SKU

LD-KTEB-126-1-TP-LC

26W CFL, Metal Case - Lamps: (1) CFQ26WG24q, (1) CFS28W/GR10q, (1) F32T8, (1) F25T8, (1) F19T5 (28” or 30”), (1) F18T5 (24” or 26”), (1) F17T8, (1) F15T8, (1) F13T8, (1) FC9T5 -Input: -Starting: Rapid Start

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Keystone KTEB-126-1-TP-LC CFL Electronic Fluorescent

Sound Rated: A

Minimum Starting Temperature: 0ºF, -18ºC

Maximum Case Temperature: 167ºF, 75ºC

Meets FCC Part 18 (Class B) Consumer Limits

Transient Protection Meets ANSI/IEEEC62.41 Cat. A

Lamp end-of-life protected

Ballast frequency for all listed lamps: 20KHz-33KHz

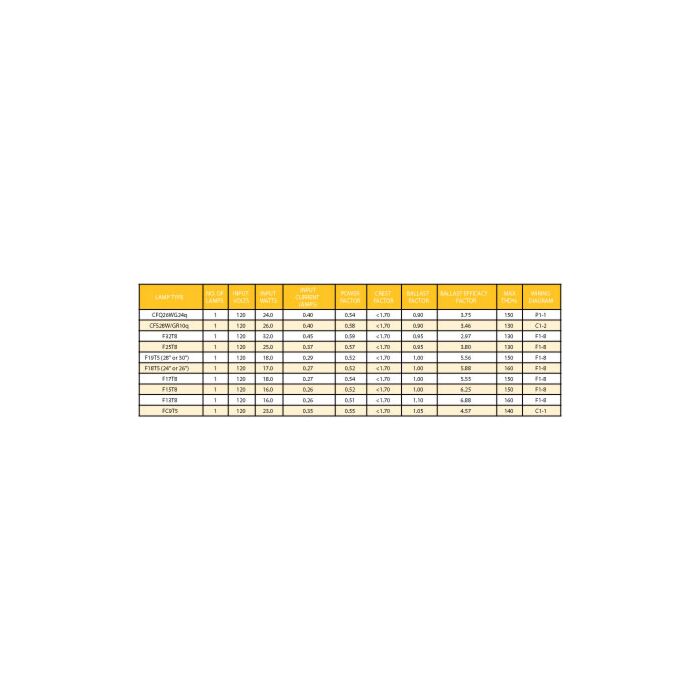

More Information

More Information
Order Code	KTEB-126-1-TP-LC
Input Volts	120V
Brand	Keystone
Mfg #	KTEB-126-1-TP-LC
# of Lamps	1 Lamp
Product Data Sheet	KTEB-126-1-TP-LC
Certifications	cUL, FCC Part 18 (Class B), Sound Rated: A, UL
Equivalents	NA
Start Method	Rapid Start
Starting Temperature	0ºF, -18ºC
Lamps	(1) CFQ26WG24q, (1) CFS28W/GR10q, (1) F32T8, (1) F25T8, (1) F19T5 (28” or 30”), (1) F18T5 (24” or 26”), (1) F17T8, (1) F15T8, (1) F13T8, (1) FC9T5
Dimensions	6.46”(L) x 1.89”(W) x 1.15”(H)
Case Size	1
Warranty	36 Month Keystone Limited Warranty
UPC	890949000489
