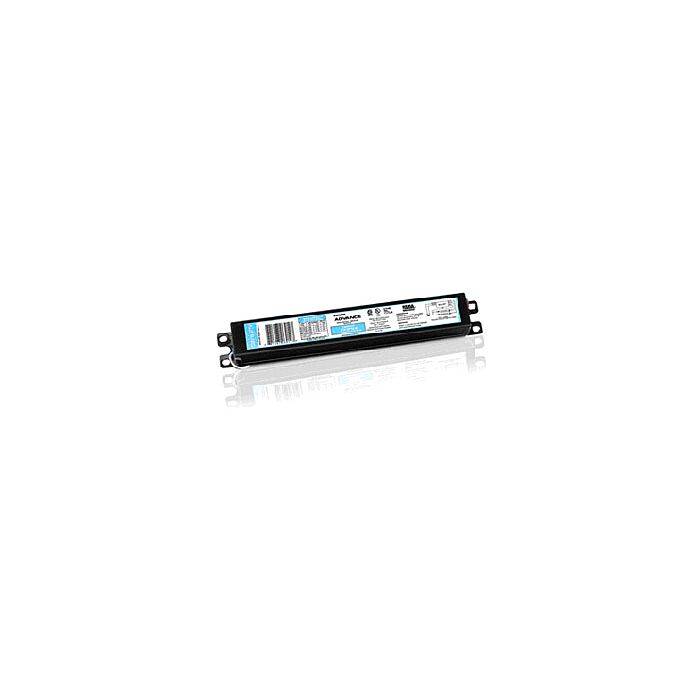

Advance Centium ICN-2S40-N T12 Electronic Fluorescent Ballast

Special Price $21.55 Regular Price $27.80

SKU

LD-ICN2S40N

Advance Centium Electronic Fluorescent Ballast - Lamps: (2) F30T12, (2) F32T12, (2) F34T12, (2) F36T12, (2) F40T12 -Input:120-277V -Starting: Rapid Start

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Advance ICN-2S40-N Electronic Fluorescent Centium® T12 Ballast

High Power Factor

Operates from 60 Hz input source of 120-277V with sustained variations of +/- 10% (voltage and frequency).

Volts: 120-277V

Rapid Start Method

Min Starting Temp: 50ºF, 10ºC

Case Temp: 70°C

<10% THD

More Information

More Information
Order Code	ICN2S40N
Input Volts	120-277V
Brand	Advance Centium
Mfg #	ICN2S40N35i
# of Lamps	2 Lamps
Product Data Sheet	EL-2470-R03_v1
Certifications	UL
Equivalents	Advance: R-2S40-1-TP, R2S401TP
Start Method	Rapid Start
Starting Temperature	50ºF, 10ºC
Lamps	(2) F30T12, (2) F32T12, (2) F34T12, (2) F36T12, (2) F40T12
Dimensions	9.5”(L) x 1.5”(W) x 1.0”(H)
Case Size	10
Warranty	5 Year Advance Philips Limited Warranty
UPC	781087074879
