Advance SmartMate ICF-2S42-M2-LD-K Electronic Compact Fluorescent (CFL) Ballast Kit

1 review(s)

Special Price $32.50 Regular Price $48.78

SKU

BD1-ICF2S42M2LDK

Advance SmartMate Electronic Compact Fluorescent (CFL) Ballast - Lamps: (1) FC9T5 & (1) FC12T5, (2) CFM26W/GX24Q, (2) CFM32W/GX24q, (2) CFM42W/GX24q, (1) CFM57W/GX24Q, (1) CFM70W/GX24Q, (2) CFQ26W/G24q, (2) CFS28W/GR10q, (2) CFS38W/GR10q, (1) CFTR57W/GX24Q, (2) FT24W/2G11, (1) FT40W/2G11, (1) FT40W/2G11/RS, (2) FT40W/2G11/RS -Input:120-277V -Starting: Instant Start

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Philips Advance ICF-2S42-M2-LD Electronic Compact Fluorescent Ballast KIT

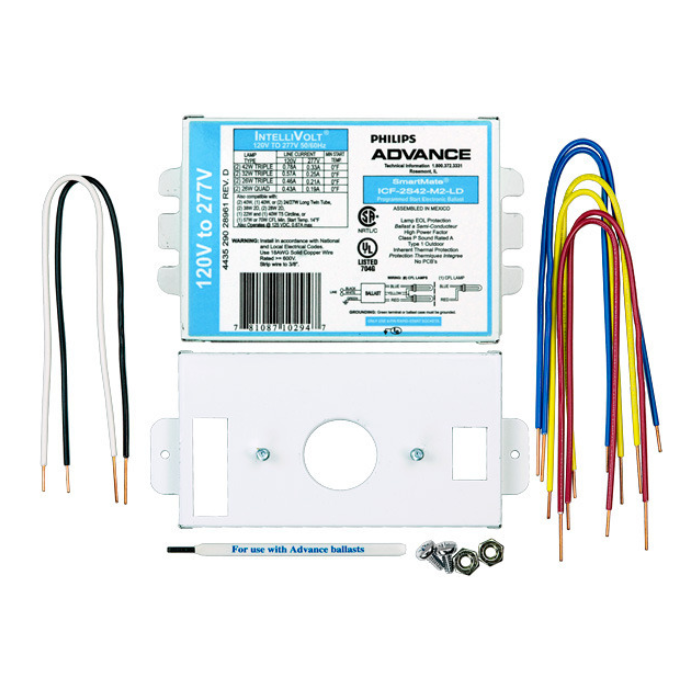

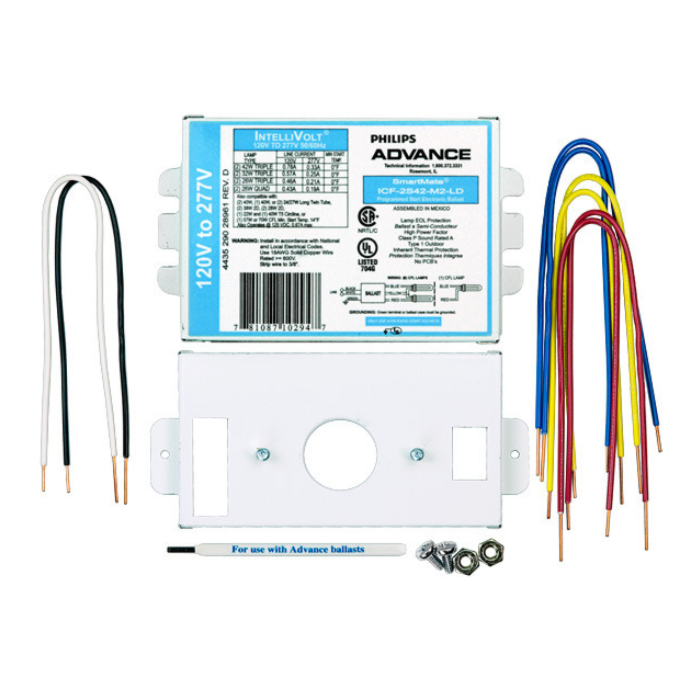

Kit includes Ballast, Mounting Plate Adapter, Lead Wires, Screws, and Wire Extraction Tool

High Power Factor

Operates from 60 Hz input source of 120-277V with sustained variations of +/- 10% (voltage and frequency).

Volts: 120/277V

Programmed Start Method

Min Starting Temp: 0ºF, -18ºC

Case Temp: 75°C

<10% THD

More Information

More Information
Order Code	ICF2S42M2LDK
Input Volts	120-277V
Brand	Advance Smartmate
Mfg #	ICF2S42M2LDK
# of Lamps	2 Lamps
Product Data Sheet	BD-ICF-2S42-M2-LD-K
Certifications	CEE Qualified, cETL, cETLus, Chicago Approved, Class P
Equivalents	GE C242UNVSE-IP Sylvania QTP 2x26/32/42CF/UNV DM Universal C242UNV-BE, C242UNV-SE
Start Method	Instant Start
Starting Temperature	0ºF, -18ºC
Lamps	(1) FC9T5 & (1) FC12T5, (2) CFM26W/GX24Q, (2) CFM32W/GX24q, (2) CFM42W/GX24q, (1) CFM57W/GX24Q, (1) CFM70W/GX24Q, (2) CFQ26W/G24q, (2) CFS28W/GR10q, (2) CFS38W/GR10q, (1) CFTR57W/GX24Q, (2) FT24W/2G11, (1) FT40W/2G11, (1) FT40W/2G11/RS, (2) FT40W/2G11/RS

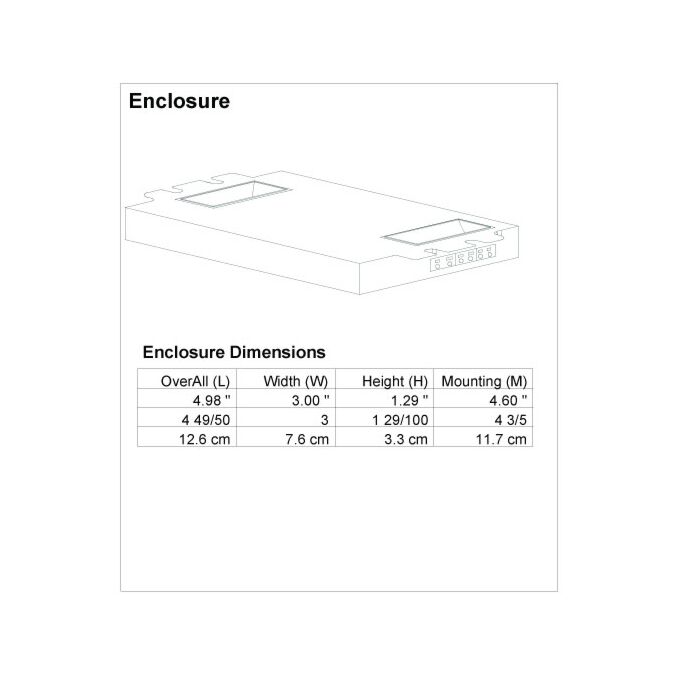

Dimensions	4 49/50" x 2 2/5" x 1"
Case Size	ea
Warranty	Up to 60 Month Advance Philips Limited Warranty
UPC	781087117798
