Advance SmartMate ICF-2S13-H1-LD-K Electronic Compact Fluorescent (CFL) Ballast Kit

Advance SmartMate ICF-2S13-H1-LD-K Electronic Compact Fluorescent (CFL) Ballast Kit

Special Price $26.65 Regular Price $35.53

SKU

7513

Advance SmartMate Electronic Compact Fluorescent (CFL) Ballast - Lamps: (1/2) 10/13 Watt, (1) 16 Watt 4-Pin -Input:120-277V -Starting: Instant Start

ICF-2S13-H1-LD-K

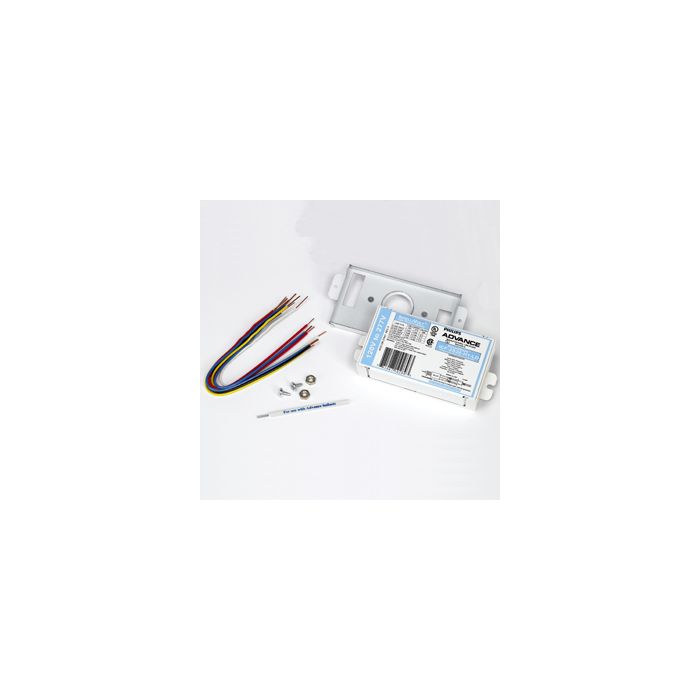

Advance ICF-2S13-H1-LD-K Electronic Compact Fluorescent Ballast Kit

Ballast Kit
High Power Factor
Operates from 60 Hz input source of 120-277V with sustained variations of +/- 10% (voltage and frequency).
Volts: 120/277V
Programmed Start Method
Min Starting Temp: 0ºF, -18ºC
Case Temp: 75°C
<10% THD

Order Code	ICF-2S13-H1-LD-K
Input Volts	120-277V
Brand	Advance Smartmate
Mfg #	ICF2S13H1LDK
# of Lamps	1 Lamp, 2 Lamps
Product Data Sheet	8514080221
Certifications	CSA, UL
Equivalents	Sylvania QTP 1/2x13CF/UNV DM Universal C213UNV-SE, C213UNV-BE, C213UNV-BES Advance Philips ICF2S13H1LDK
Start Method	Instant Start
Starting Temperature	0ºF, -18ºC

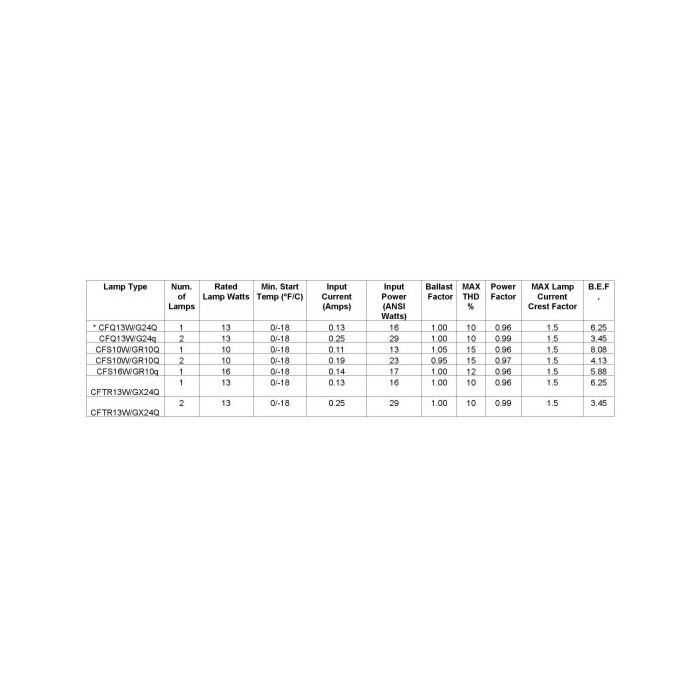

Lamps	(1/2) 10/13 Watt, (1) 16 Watt 4-Pin

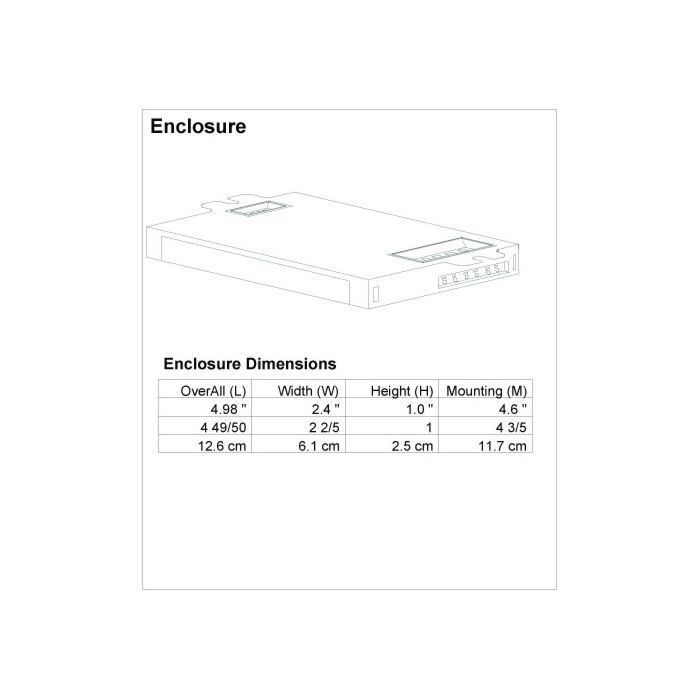

Dimensions	4 49/50" x 2 2/5" x 1"
Case Size	ea
Warranty	Up to 60 Month Advance Philips Limited Warranty
UPC	781087117750
