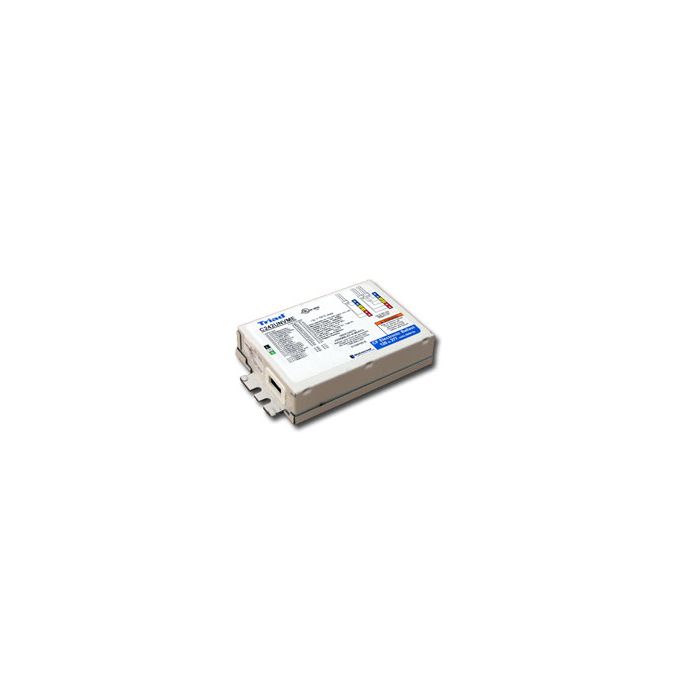

Universal Triad C242UNVME Electronic Compact Fluorescent (CFL) Ballast

2 review(s)

Special Price $29.55 Regular Price $34.90

SKU

BD36-C242UNVME

Universal Triad Electronic Compact Fluorescent (CFL) Ballast - Lamps: (1/2) CFM42W/GX24q, (2) FC12T5-40W Circline, (1/2) CFM36W/2G10,(2) CFTR32W/GX24q, (2) CFS28W/GR10q, (2) CFQ/TR26W/GX24q, (2) FT24W/G11, (2) FC9T5-22W Circline, (1) FT55W/2G11,(1&1) FC9T5-22W & FC12T5-40W Circline, (1) CFM57W/GX24q 4-pin lamps, (1) CFM -Input:120-277V -Starting: Programmed Start

DISCONTINUED by Universal!!! See the Advance ICF-2S42-M2-LD or the Advance ICF-2S42-M2-LD KIT as cross reference replacements.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Universal Electronic Compact Fluorescent CFL Triad® Ballast

Lead Configuration - Multi-Exit

High Power Factor

Regulation: ±10%

Electronic compact fluorescent ballast(s) for (2/1)CFM42W/GX24q, (2)FC12T5-40W, (2/1)CFM36W/2G10,(2)CFTR32W/GX24q, (2)CFS28W/GR10q, (2)CFQ/TR26W/GX24q, (2)FT24W/G11, (2)FC9T5-22W, (1)FT55W/2G11,(1&1)FC9T5-22W & FC12T5-40W, (1)CFM57W/GX24q 4-pin lamps, (1)CFM70W/Gx24q, (2/1) FT36W/2G11, (2/1) FT40W/2G11

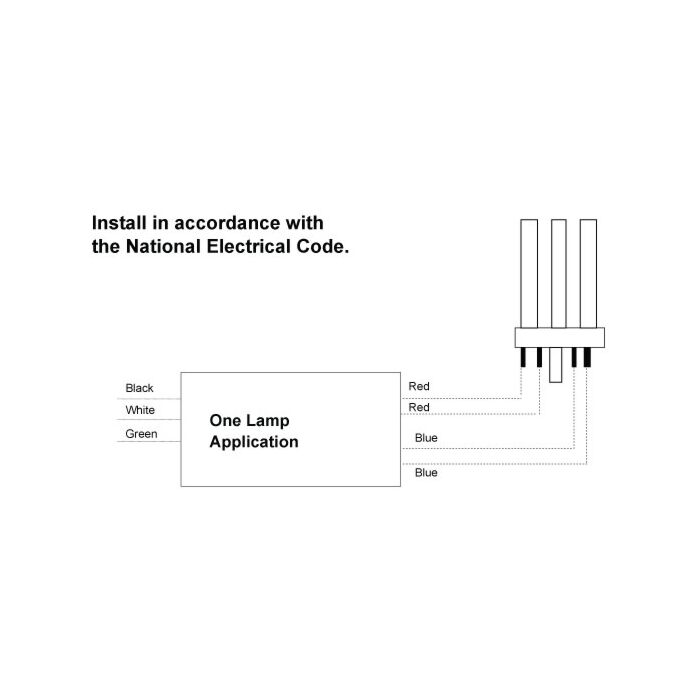

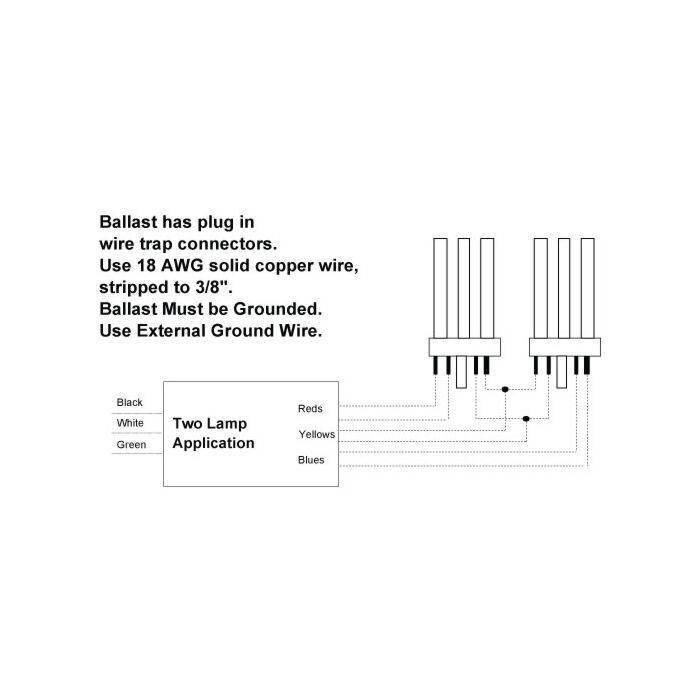

Series Lamp Connection

Meets ANSI Standard C82.11

Sound Rated: A

More Information

More Information
Order Code	C242UNVME
Input Volts	120-277V
Brand	Universal Triad
Mfg #	C242UNVME
# of Lamps	1 Lamp, 2 Lamps
Product Data Sheet	C242UNV
Certifications	cUL
Equivalents	Sli/Valmont E1/232/42PUVNCF Sylvania Osram QTP1X57CF/UNVBM, QTP2X26/32/42CF/UNV DM, QTP2X42CF/UNVBM, QTP2X42CF/UNVTM Sli/Valmont E1/232/42PUVNCF Universal C242UNVSE, C242UNVBE, C242UNVBES, C242UNVSES , C242UNVMES001I, C242UNVME001I
Start Method	Programmed Start
Starting Temperature	0ºF, -18ºC
Lamps	(1/2) CFM42W/GX24q, (2) FC12T5-40W Circline, (1/2) CFM36W/2G10,(2) CFTR32W/GX24q, (2) CFS28W/GR10q, (2) CFQ/TR26W/GX24q, (2) FT24W/G11, (2) FC9T5-22W Circline, (1) FT55W/2G11,(1&1) FC9T5-22W & FC12T5-40W Circline, (1) CFM57W/GX24q 4-pin lamps, (1) CFM
Dimensions	4.94" x 2.98" x 1.00"
Case Size	10
Warranty	60 Month Universal Limited Warranty
UPC	76838625624
