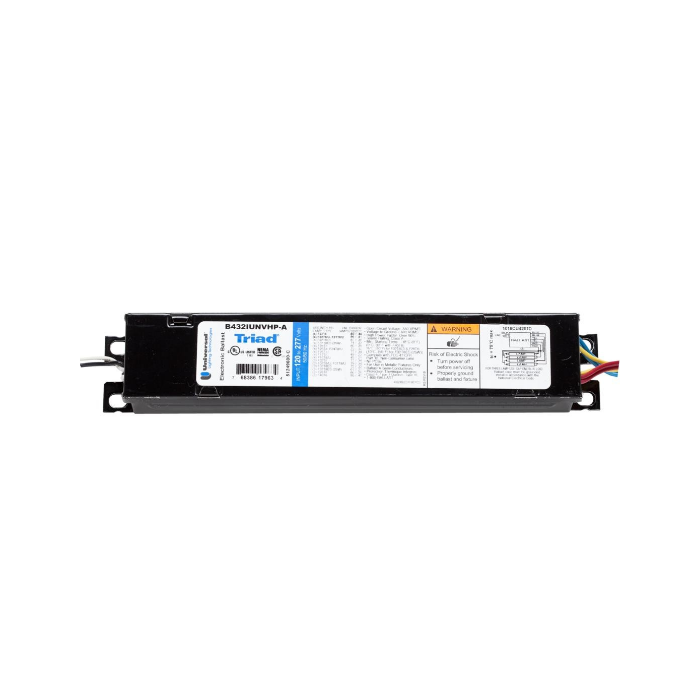

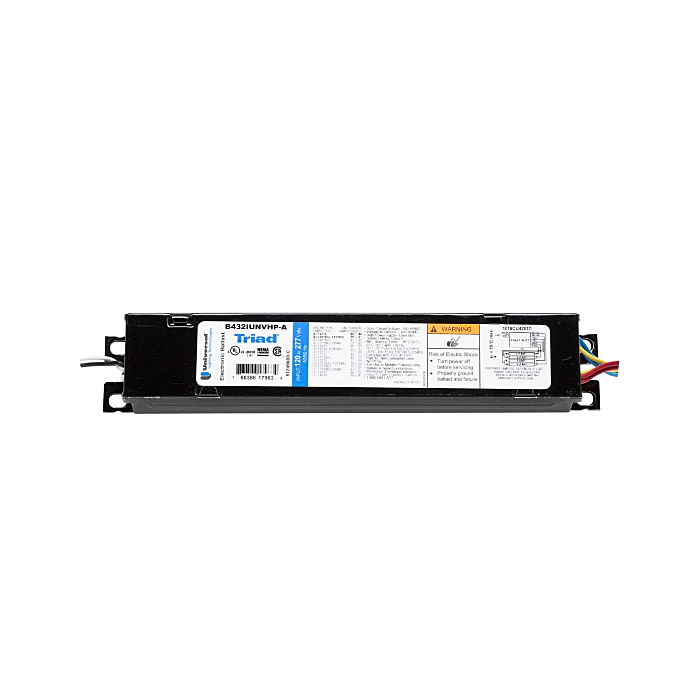

Universal Triad B432IUNVHP-A T8 Electronic Fluorescent Ballast

Special Price $18.85 Regular Price $24.98

SKU

1015

Universal Triad Electronic Fluorescent Ballast - Lamps: (4) F17T8, (4) F25T8, (3/4) F28T8, (3/4) F32T8, (3/4) F32T8ES, (3/4) F32T8ES-25W, (4) F25T12, and (3) F40T8 -Input:120-277V -Starting: Instant Start

DISCONTINUED by Universal. See the Advance ICN-4P32-N as a cross reference replacement.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Universal Triad® Electronic Fluorescent T8 Ballast

Minimum Starting Temperature: 0° F, -18° C

Regulation: ±10%

Active Power Factor Correction

Sound Rated: A

Remote Mounting: 18ft. max. lead length, 18 AWG

No remote/tandem wiring for ES lamps

More Information

More Information
Order Code	B432IUNVHP-A000I
Input Volts	120-277V
Brand	Universal Triad
Mfg #	B432IUNVHP-A000I
# of Lamps	3 Lamps, 4 Lamps
Product Data Sheet	B432IUNVHP-A
Certifications	CSA, UL
Equivalents	GE GE432MAX-N, GE432MAX-N/CTR, GE432MAX-N/CTR, GE432MAX-N-DIY, GE432MAX-N/ULTRA, GE432MV-N, GE-432MV-N-DIY, GE432MVN-DIY, GE-432-MV-N, GE-432-120-N, GE-432-277-N Sylvania QTP4x32T8/UNVISN-SC, QT4X31/220IS, QT4X32/277IS, QT4X32T8/120ISN-SC, QT4X32T8/277ISN-SC, QTP4X32T8/120ISN-SC, QTP4X32T8/277ISN-SC, QTP4X32T8/UNVISN-SC, M4-IN-T8-A-120, M4-IN-T8-A-277 Sola E-758-F-432, E-758-T-432 Sli/Valmont E432IUVN, U432PI120S, U432PI277S Universal B432I120RH-A, B432I277RH-A, B432I120HP, B432I277HP, B432IUNVHP-A Dynamic Ballast DY432ISWV, DY432IS120, DY432IS277 Advance Philips ICN-4P32-SC, ICN4P32SCHAZ, RCN-4P32, RCN-4P32-SC, REL-4P32-SC, VCN-4P32-SC, VEL-4P32-SC, IOP-4PSP32-SC Universal B432I120RH-A, B432I277RH-A, B432I120HP, B432I277HP, B432I120HP, B432I120HP-A, B432I277HP-A, B432IUNVHP-A, ES6024NMT10, ES6054NMT10, ES6074NMT10, ES6354BM10, QT4X31/220HD1, QT4X31/220HD10, QT4X32/277HD1, QT4X32/277HD10, SLI432IUNVHPA, SLI432IUNVHP-B
Start Method	Instant Start
Starting Temperature	0ºF, -18ºC
Lamps	(4) F17T8, (4) F25T8, (3/4) F28T8, (3/4) F32T8, (3/4) F32T8ES, (3/4) F32T8ES-25W, (4) F25T12, and (3) F40T8
Dimensions	9.50" x 1.70" x 1.18"
Case Size	10
Warranty	60 Month Universal Limited Warranty
UPC	768386200505
