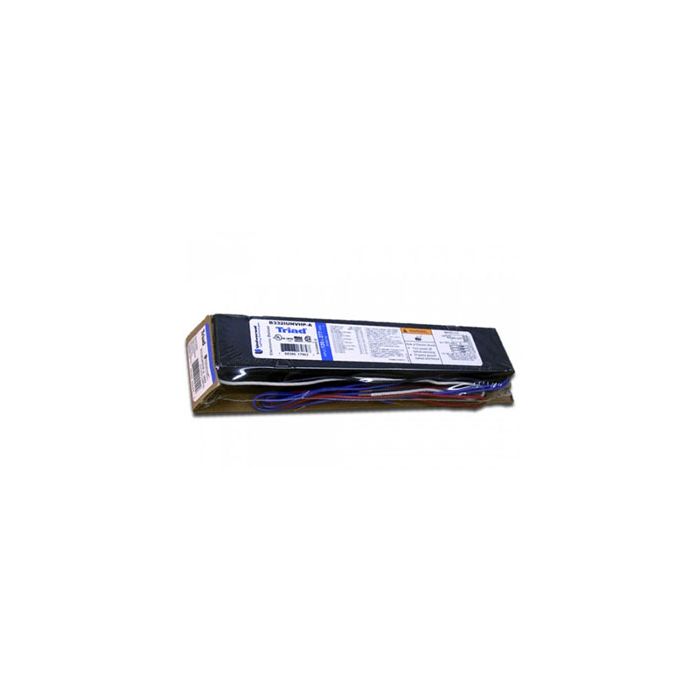

Universal Triad B332IUNVHP-A T8 Electronic Fluorescent Ballast

Special Price $17.80 Regular Price $22.00

SKU

6528

Universal Triad Electronic Fluorescent Ballast - Lamps: (3) F17T8, (3) F25T8, (2/3) F28T8, (2/3) F32T8, (2/3) F32T8ES, (2/3) F32T8ES-25W, (2) F40T8 and (3) F25T12 -Input:120-277V -Starting: Instant Start

DISCONTINUED by Universal. SEE the cross reference equivalent options below:

Advance ICN-3P32-N

Keystone KTEB-332-UV-IS-N-P

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Universal Triad® Electronic Fluorescent T8 Ballast

Minimum Starting Temperature: 0° F, -18° C

Regulation: ±10%

Active Power Factor Correction

Sound Rated: A

Remote Mounting: 18ft. max. lead length, 18 AWG

Anti-striation circuitry

No remote/tandem wiring for ES lamps

More Information

More Information
Order Code	B332IUNVHP-A000I
Input Volts	120-277V
Brand	Universal Triad
Mfg #	B332IUNVHP-A000I
# of Lamps	2 Lamps, 3 Lamps
Product Data Sheet	B332IUNVHP-A
Certifications	CSA, UL
Equivalents	GE GE-332-120-N, GE-332-277-N, GE332MAX-N, GE332MAX-N/CTR, GE332MAX-N/CTR, GE332MAX-N/ULTRA, GE-332-MV-N, GE-332-120-N, GE-332-277-N Sylvania Osram QT3X32T8/120IS, QT3X32T8/277IS, QT3X32T8/277ISN-SC, QTP3X32T8/UNVISN-SC, QTP3X32T8/120ISN-SC, QTP3X32T8/277ISN-SC, QTP3X32T8/UNVISN-SC, M3-IN-T8-A-120, M3-IN-T8-A-277 Dynamic Ballast DY332ISWV, DY332IS120, DY332IS277 Advance Philips ICN-3P32-SC, ICN3P32SCHAZ, RCN-3P32-SC, REL-3P32-SC, VCN-3P32-SC, VEL-3P32-SC Universal B332I120HP, B332I120HP-A, B332I277HP, B332I277HPA, B332IUNVHP-A, ES6023NMT10, ES6053NMT10, ES6073NMT10, QT3X31/220HD1, QT3X31/220HD10, QT3X32/277HD1, QT3X32/277HD10, SLI332IUNVHPA, SLI332IUNVHP-B, B332I120RH-A, B240I277HP, B240I120HP, B332IUNVHP-A010C
Start Method	Instant Start
Starting Temperature	0ºF, -18ºC
Lamps	(3) F17T8, (3) F25T8, (2/3) F28T8, (2/3) F32T8, (2/3) F32T8ES, (2/3) F32T8ES-25W, (2) F40T8 and (3) F25T12
Dimensions	9.50" x 1.70" x 1.18"
Case Size	10
Warranty	60 Month Universal Limited Warranty
UPC	768386555605
