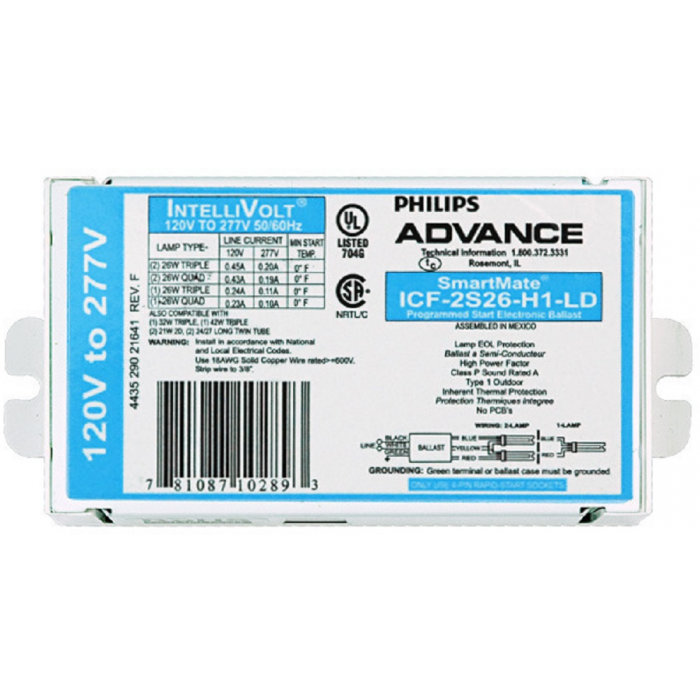

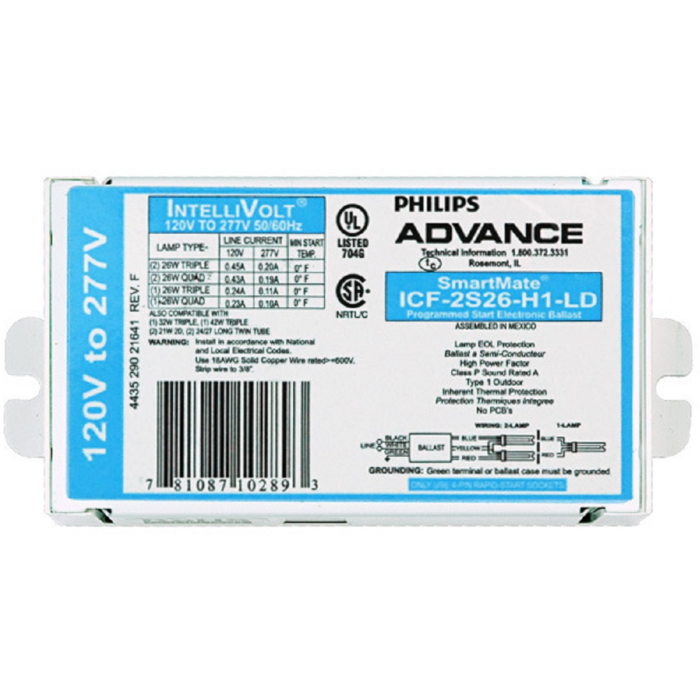

Advance SmartMate ICF-2S26-H1-LD Electronic Compact Fluorescent (CFL) Ballast (NON-Kit)

5 review(s)

Special Price $26.65 Regular Price $35.53

SKU

BD27-ICF2S26H1LD

Advance SmartMate Electronic Compact Fluorescent (CFL) Ballast - Lamps: (1/2) 26 Watt, (1) 32/42 Watt, (2) 21/24 Watt, 4-Pin Lamps -Input:120-277V -Starting: Programmed Start

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Advance Philips Electronic Compact Fluorescent Ballast

High Power Factor

Operates from 60 Hz input source of 120-277V with sustained variations of +/- 10% (voltage and frequency).

Volts: 120/277V

Programmed Start Method

Min Starting Temp: 0ºF, -18ºC

Case Temp: 75°C

<10% THD

More Information

More Information
Order Code	ICF2S26H1LD
Input Volts	120-277V
Brand	Advance Smartmate
Mfg #	ICF2S26H1LD35M
# of Lamps	1 Lamp, 2 Lamps
Product Data Sheet	8514080224
Certifications	CSA, UL
Equivalents	Sylvania QTP 2x26CF/UNV DM Universal C2642UNV-BE, C2642UNV-SE
Start Method	Programmed Start
Starting Temperature	0ºF, -18ºC

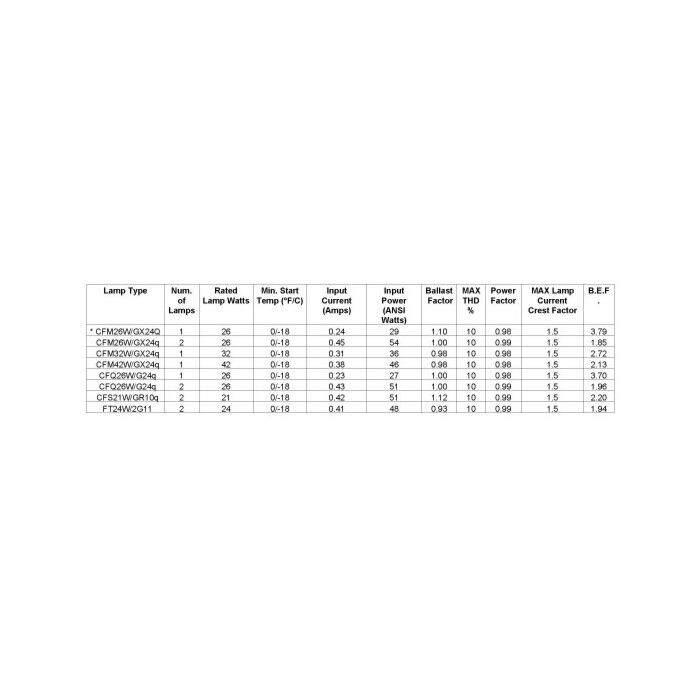

Lamps	(1/2) 26 Watt, (1) 32/42 Watt, (2) 21/24 Watt, 4-Pin Lamps

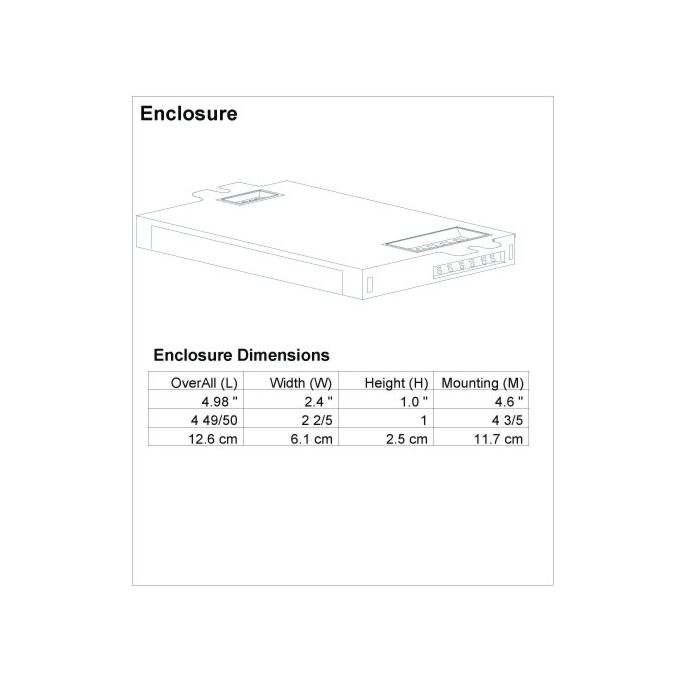

Dimensions	4 49/50" x 2 2/5" x 1"
Case Size	12
Warranty	Up to 60 Month Advance Philips Limited Warranty
UPC	781087107423
