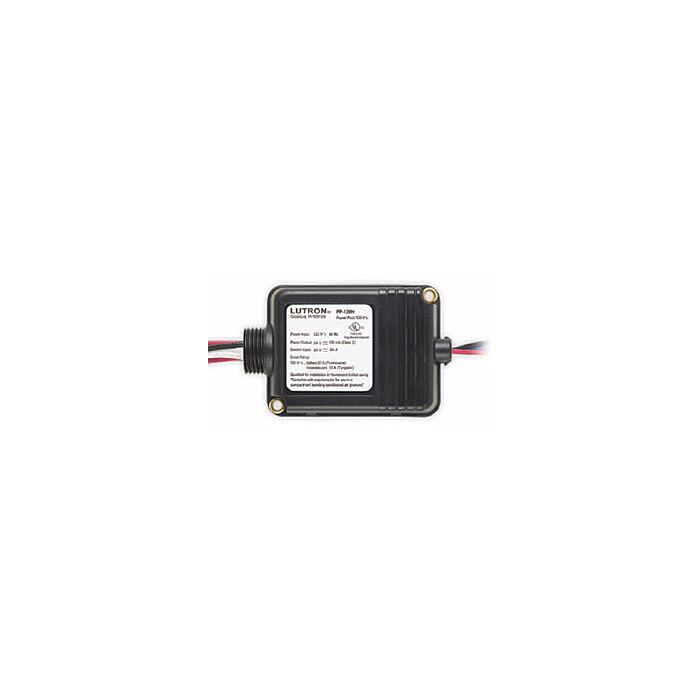

Lutron PP-120H Power Pack

Special Price $42.86 Regular Price $60.00

SKU

2861

Power switch packs provide both the 24 V power supply to operate. Lutron sensors as well as the 20 A line voltage relay to control the load in one compact housing. Input Voltage: 120 V , 60 Hz Control Input: 24 V , 5 mA Output Voltage: 24 V , 100 mA

DISCONTINUED by Lutron. See the dual voltage version as the replacement - Lutron PP-DV

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Lutron PP-120H Power Pack

High-impact UL94 5 VA flammability-rated plastic case construction.

Relay: Class B (130°C) insulating material; silver alloy contacts.

120 V, 277 V, or 347 V transformer: 60 Hz; 230 V transformer: 50 Hz.

24 V nominal output; 100 mA nominal, full wave rectified and filtered.

7” wire leads, 18 AWG input; 7” leads, 16 AWG contacts.

Relay contact rating:--20 A: 120/230/277 V ballast, --15 A: 347 V ballast, --15 A: 120 V incandescent

Complies with requirements for use in a compartment handling conditioned air (plenum).

Supports up to 3 devices, including occupant sensors and PP-SH units.

Operating environment: 32°F to 104°F (0°C to 40°C); less than 90% relative humidity, non-condensing.

More Information

More Information
Brand	Lutron
Mfg #	PP-120H
Order Code	PP-120H
Input Volts	120V
Product Data Sheet	PP-120H
UPC	27557212533
