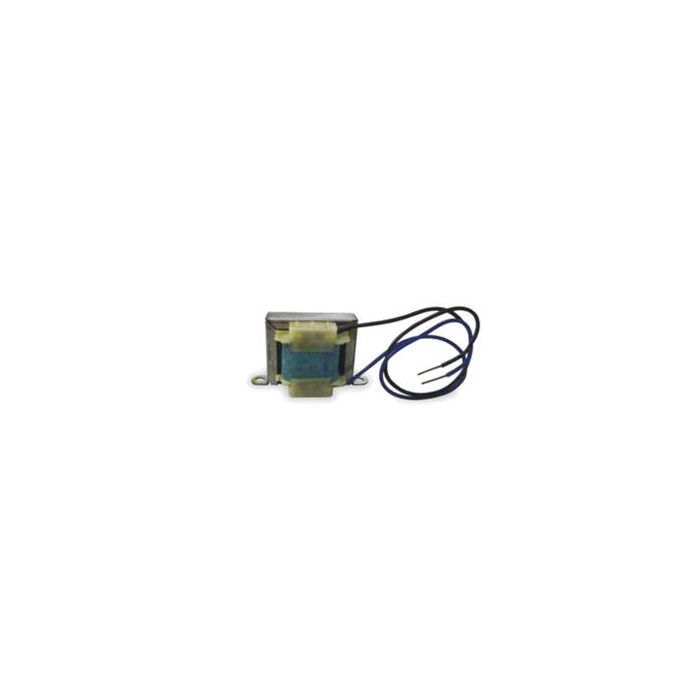

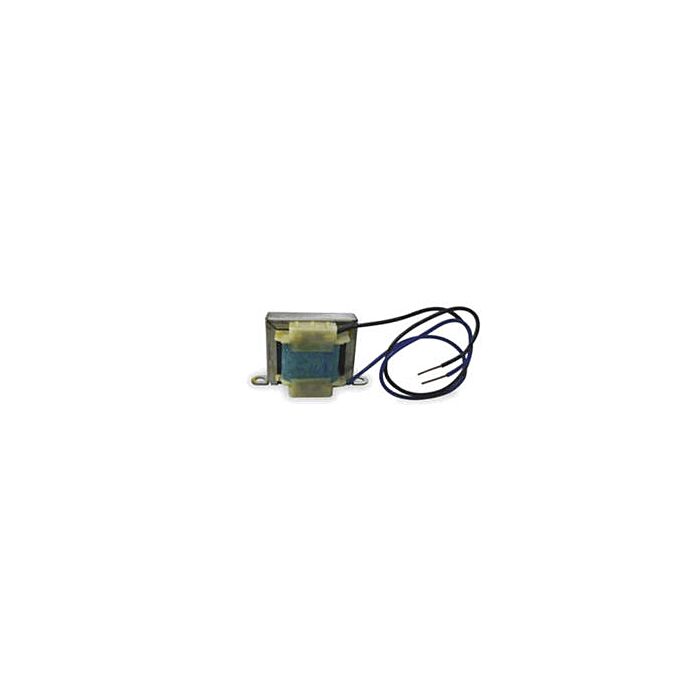

Advance LO-13-22-TP Magnetic Compact Fluorescent Ballast - *DISCONTINUED*

Special Price $17.64 Regular Price $26.46
SKU
BD1-LO-13-22-TP

Advance Magnetic Compact Fluorescent Ballast - Lamps: (1) F14/15T12, (1) F15T8, (1) F13BX, (1) F13DBX, (1) F14/15T8, (1) F14T12, (1) F15T12, (1) FC6T9, (1) FC8T9, (1) FT18W/2G11 -Input:120V -Starting: Preheat Start

*DISCONTINUED* SEE Keystone CC1322MTP as Possible Replacement

LO-13-22-TP

Advance Philips Magnetic Preheat Compact Fluorescent Ballast

  • Normal Power Factor
  • Operates from 60 Hz input source of 120-277V with sustained variations of +/- 10% (voltage and frequency).
  • Volts: 120V
  • Preheat Start Method
  • Min Starting Temp: 50ºF, 10ºC
  • Case Temp: 70°C
  • <10% THD
  • More Information
    Order Code LO1322TP
    Input Volts 120V
    Brand Advance
    Mfg # LO-13-22-TP
    # of Lamps 1 Lamp
    Product Data Sheet
    Certifications CSA, UL
    Equivalents NA
    Start Method Preheat Start
    Starting Temperature 50ºF, 10ºC
    Lamps (1) F14/15T12, (1) F15T8, (1) F13BX, (1) F13DBX, (1) F14/15T8, (1) F14T12, (1) F15T12, (1) FC6T9, (1) FC8T9, (1) FT18W/2G11

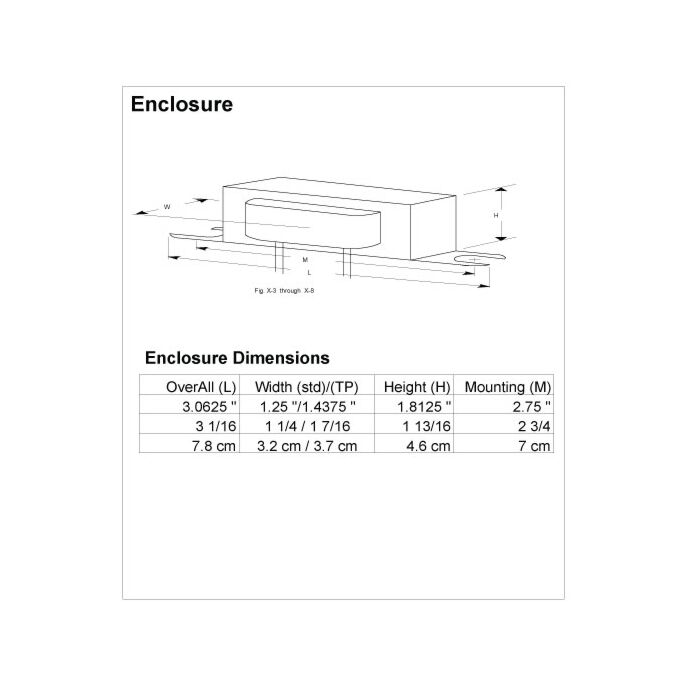

    Dimensions 3 1/16" x 1 13/16" x 1 7/16"
    Case Size ea
    Warranty 24 Month Advance Philips Limited Warranty
    UPC 781087003602
