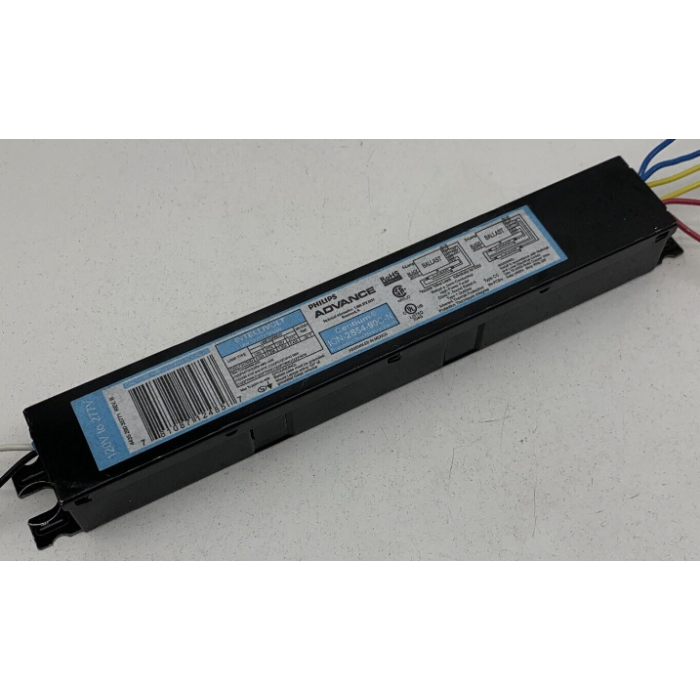

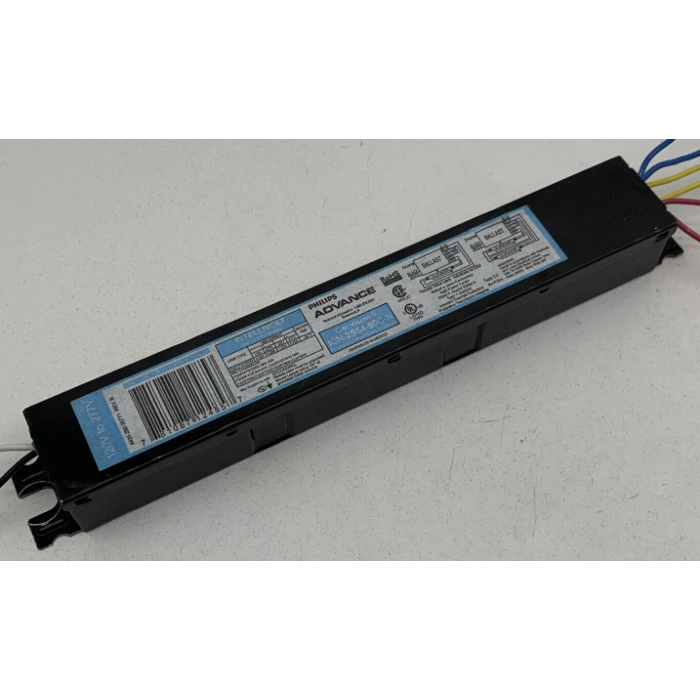

Advance Centium ICN-2S54-90C-N T5 HO Fluorescent Electronic Ballast - INDEFINITE BACKORDER
T5 HO Fluorescent Electronic - Program Start - 120-277V - Normal Ballast Factor
INDEFINITE BACKORDER at Advance. NO ETA for more stock.
See the Advance ICN-2S54-N OR the Advance ICN-2S54-90C-T as a possible replacement.
The ICN-2S54-N is the exact same ballast as the ICN-2S54-90C-N. The ONLY difference is that the ICN-2S54-90C-N is rated to withstand environments with temperatures up to 90-degrees Celsius, where as the ICN-2S54-N can withstand environments with temperatures up to 70-degrees Celsius.
The ICN-2S54-90C-T is functionally the exact same as the ICN-2S54-90C-N. The key difference is the -T version has no lead wires pre-attached and has stab-in connectors. It is also a different size, so you would need to make sure your fixture could accommodate the different size. But it is 90-degrees Celsius rated if you need that capability.
Advance ICN2S5490CN35M Electronic Ballast
Order Code | ICN2S5490CN |
---|---|
Input Volts | 120-277V |
Brand | Advance Centium |
Mfg # | ICN2S5490CN35i |
Product Data Sheet | |
Certifications | CSA, Outdoor Type 1, Sound Rated: A, UL |
Equivalents | ICN2S5490CN35M , ICN2S5490CN35i |
Start Method | Program Start |
Starting Temperature | -20ºF, -29ºC |
Lamps | F54T5/HO , F54T5/HO/ES (44W) , F54T5/HO/ES (49W) , FT55W/2G11 |
Dimensions | 9.50" (L) X 1.3" (W) X 1.0" (H) |
Case Size | 30 |
Warranty | 5 Year Warranty Advance Warranty |
UPC | 781087124864 |
