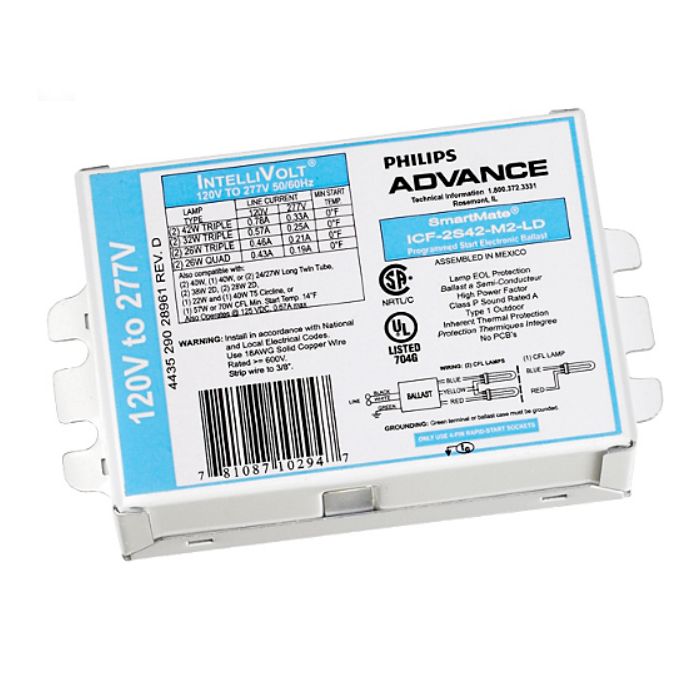

Advance Smartmate ICF-2S42-90C-M2-LD 4 Pin CFL Electronic Ballast
Special Price
$48.60
Regular Price
$64.80
SKU
7371
4 Pin CFL Electronic - Program Start - 120-277V - Normal Ballast Factor - T-Case 90-degrees Celsius rated
DISCONTINUED by Advance. SEE the Advance ICF-2S42-M2-LD or ICF-2S42-M2-LD-KIT as possible replacement options.
The ICF-2S42-M2-LD is the exact same ballast as the ICF-2S42-90C-M2-LD, but it is rated to 75-degrees Celsius instead of 90-degrees Celsius. Spec-wise and wiring are ALL the exact same, though.
Advance SmartMate ICF-2S42-90C-M1-BS-QS CFL Electronic Ballast
| Order Code | ICF2S4290CM2LD |
|---|---|
| Input Volts | 120-277V |
| Brand | Advance Smartmate |
| Mfg # | ICF2S4290CM2LD35M |
| Product Data Sheet | |
| Certifications | CSA, Outdoor Type 1, Sound Rated: A, UL |
| Equivalents | ICF2S4290CM2LD35M , ICF2S4290CM2LD35i |
| Start Method | Program Start |
| Starting Temperature | 0ºF, -18ºC |
| Lamps | (2) FC9T5 & (1) FC12T5 , (2) CFM26W/GX24Q , (2) CFM32W/GX24Q, (1 or 2) CFM42W/GX24Q, (1) CFM57W/GX24Q, (1) CFM70W/GX24Q |
| Dimensions | 4.98" x 3.0" x 1.29" |
| Case Size | 20 |
| Warranty | 5 Year Warranty Advance Warranty |
| UPC | 781087044025 |
