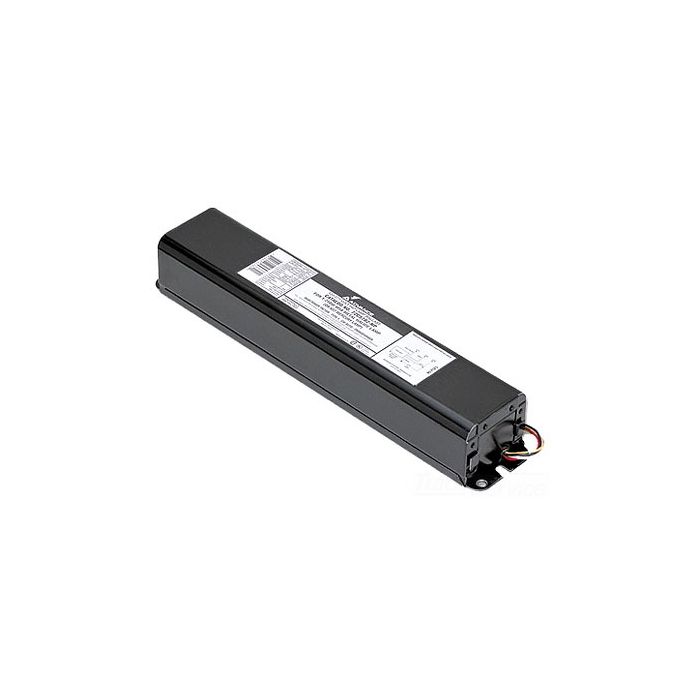

Advance 72C8084-NP001 100 Watt High Pressure Sodium Fcan Ballast

Special Price $120.19 Regular Price $192.90

SKU

LD-72C8084-NP001

100 Watt High Pressure Sodium Fcan Ballast - Lamps: 100 Watt S54 High Pressure Sodium Fcan Ballast -Input:120/277V -Starting: Pulse Start

Kit includes: Ballast,Capacitor, Bracket Kit, and Ignitor

ANSI Designation: S54

Line Voltage: 120//277

Regulation: 5%

Frequency: 60 Hz

Recommended Fuse (A): 5/3

Circuit Type: HX-HPF

Insulation Class: 105ºC

Capacitor included as part of assembly

Maximum Distance to Lamp: 15 FT

Agency Certification: RU, CSA, UL

2 Year Warranty

More Information
Order Code	72C8084NP001
Input Volts	120/277V
Watts	100
ANSI	S54
Brand	Advance
Mfg #	72C8084-NP001

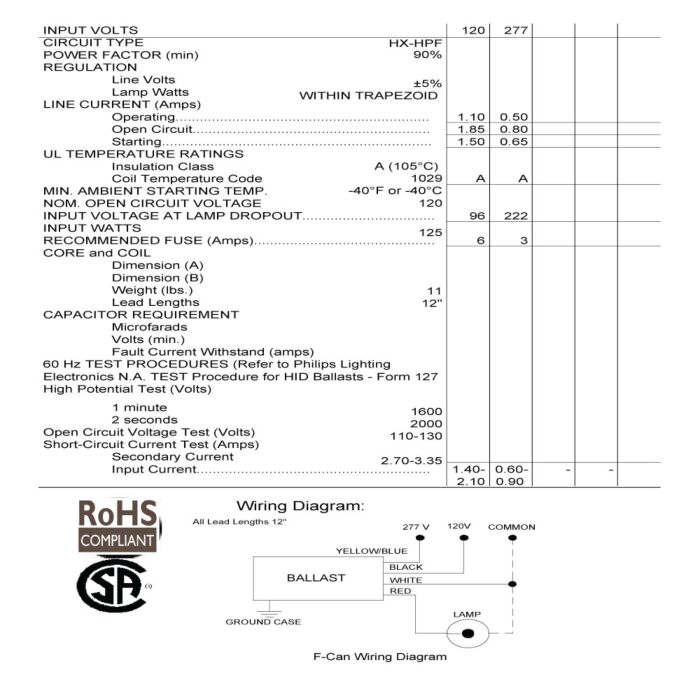

Product Data Sheet	72C8084-NP001 Advance HID Brochure
Equivalents	Advance: 72C8005-NP
Certifications	Sound Rated: A, UL
Lamps	100 Watt S54 High Pressure Sodium Fcan Ballast

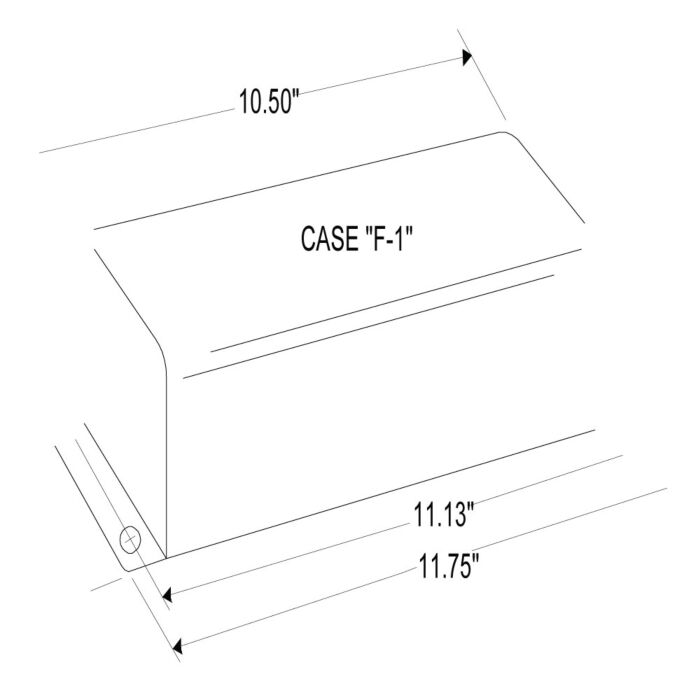

Dimensions	11.75"(L) x 3.19"(W) x 2.63"(H)
Case Size	4
Warranty	2 Year Advance Warranty
UPC	781087280843
